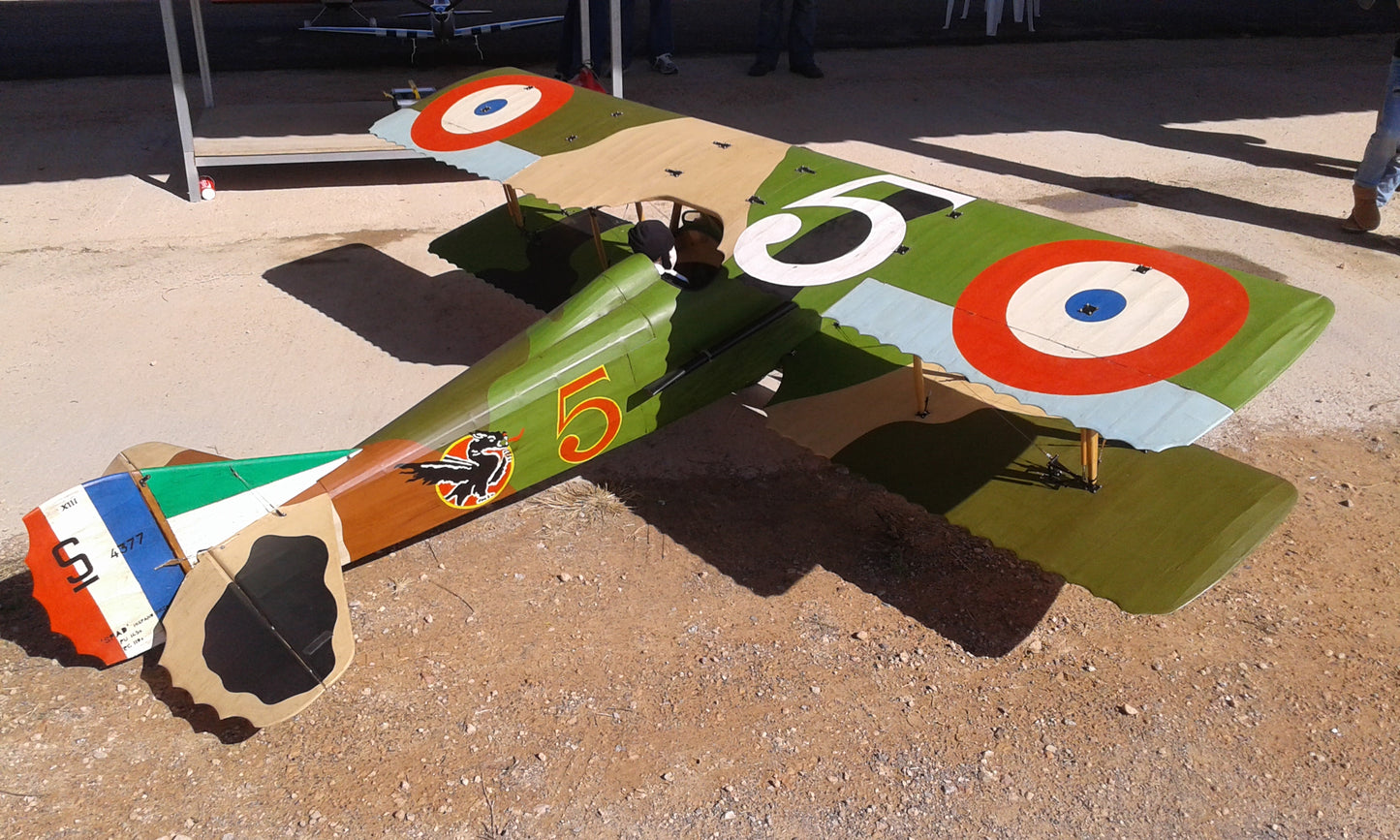

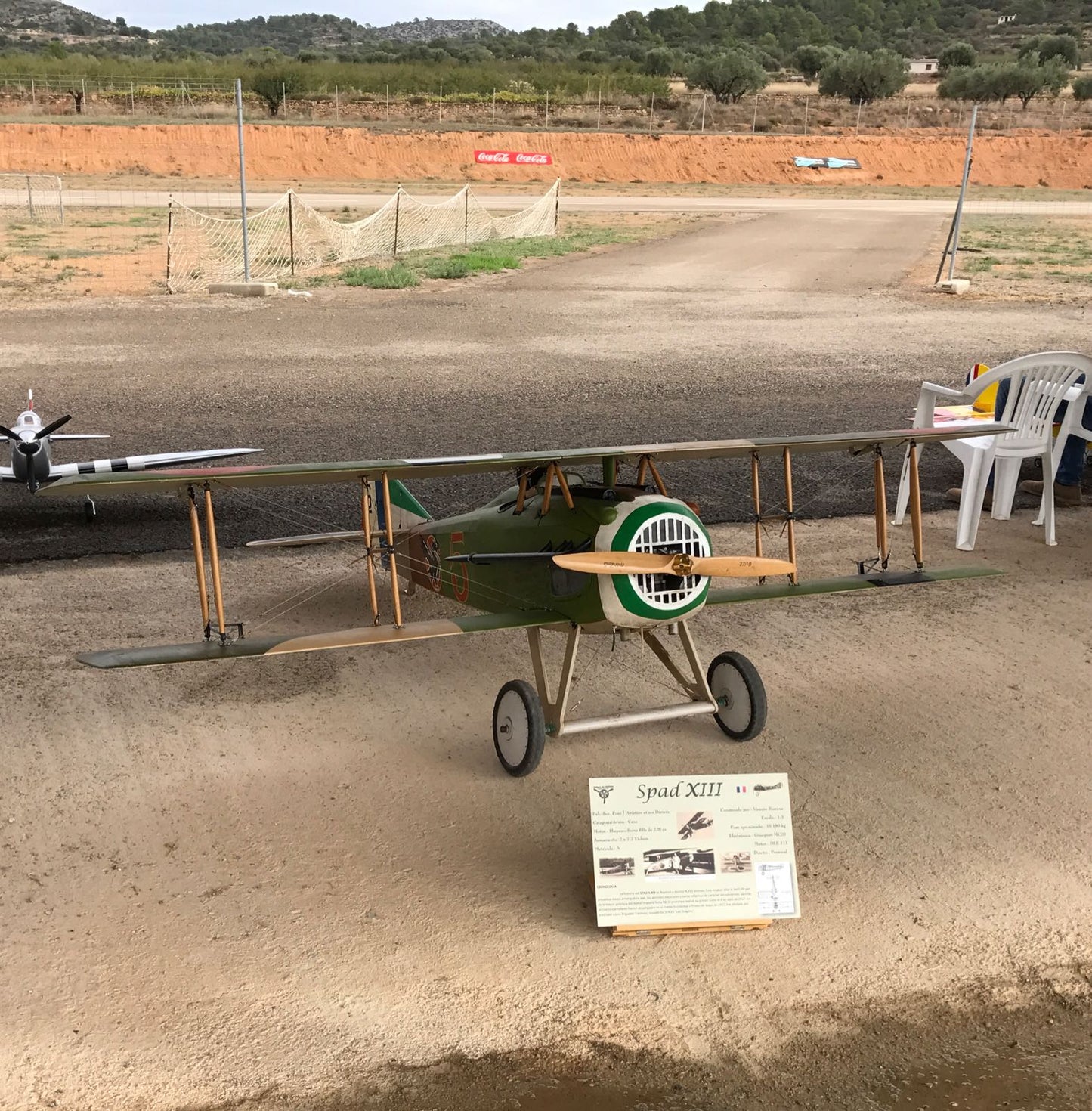

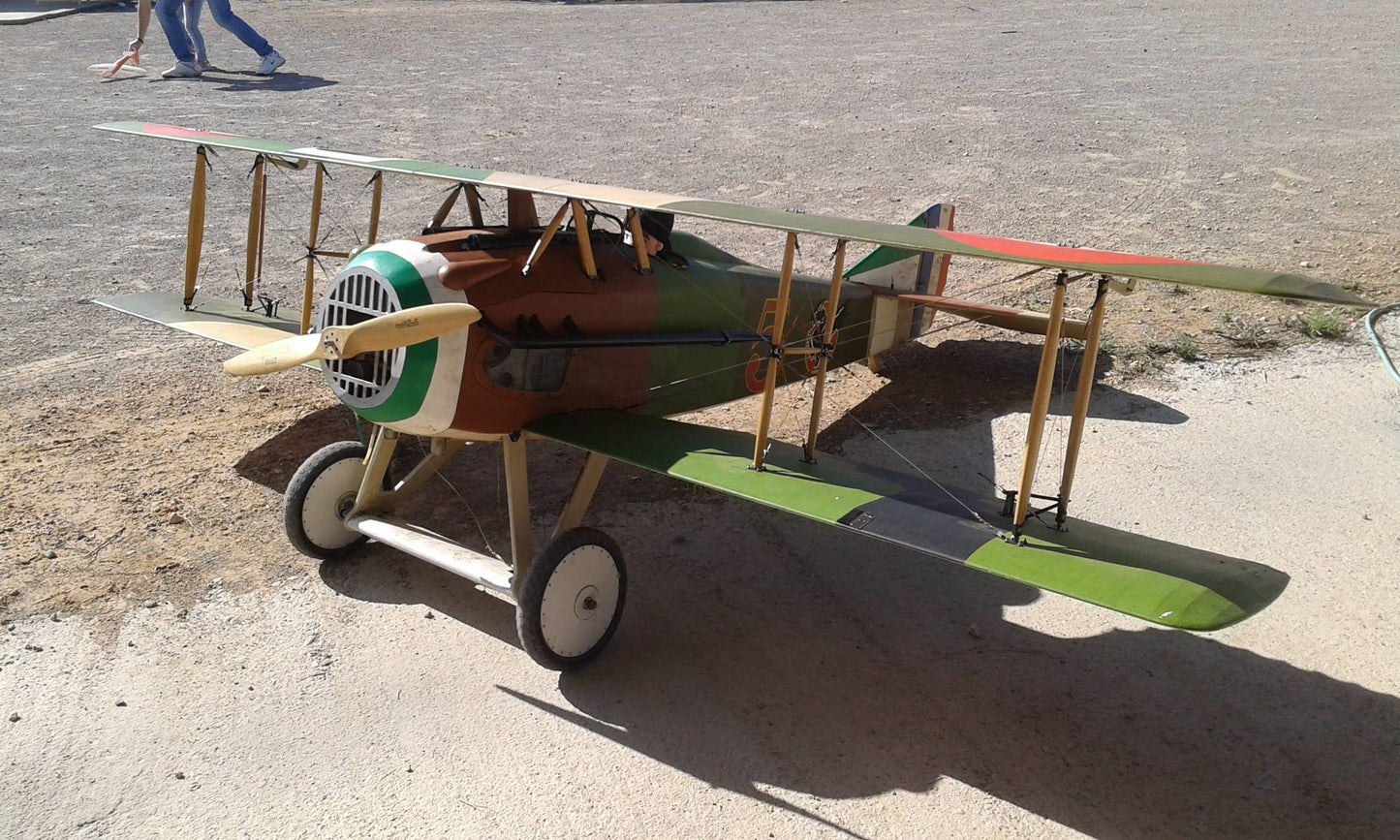

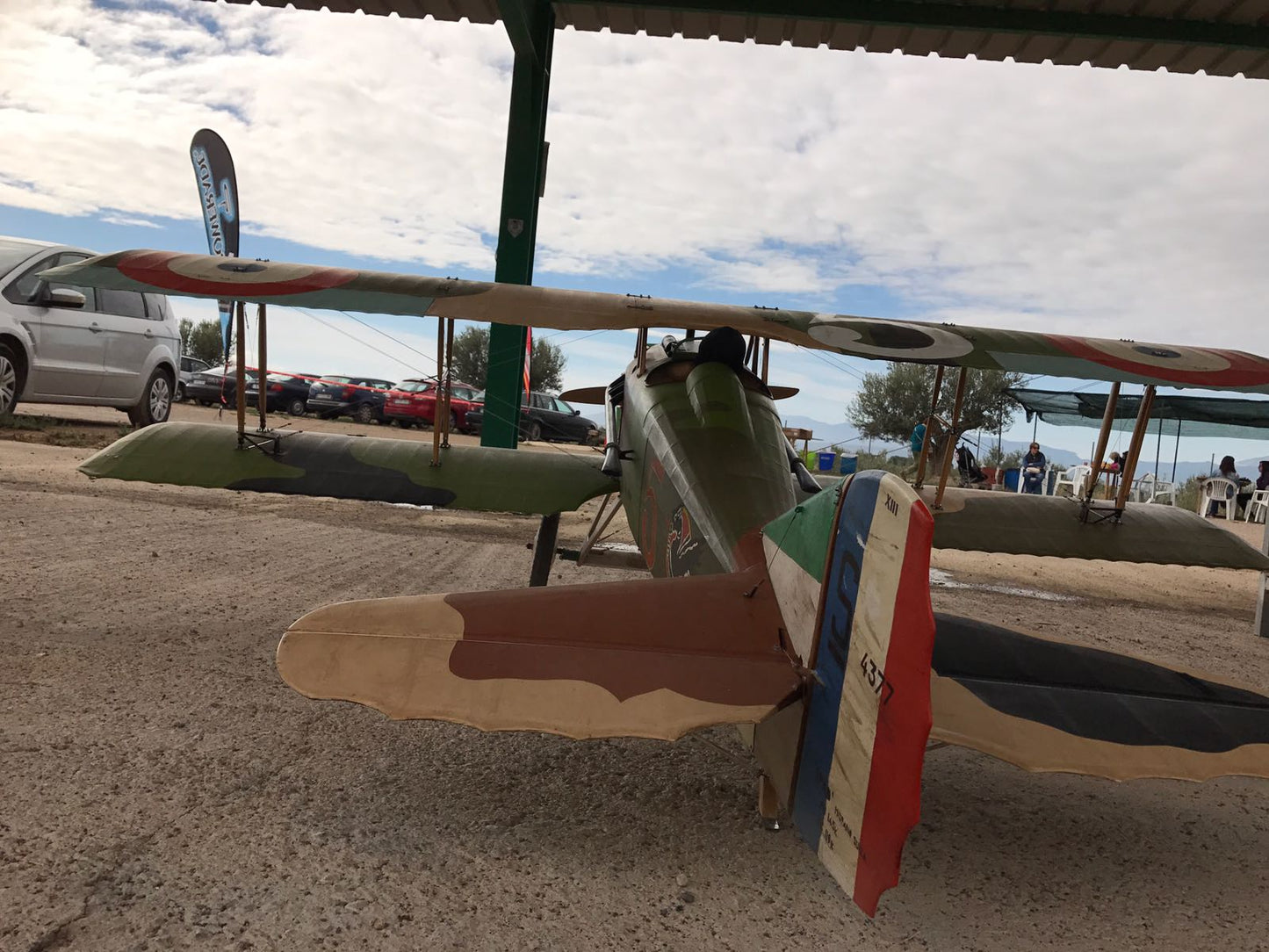

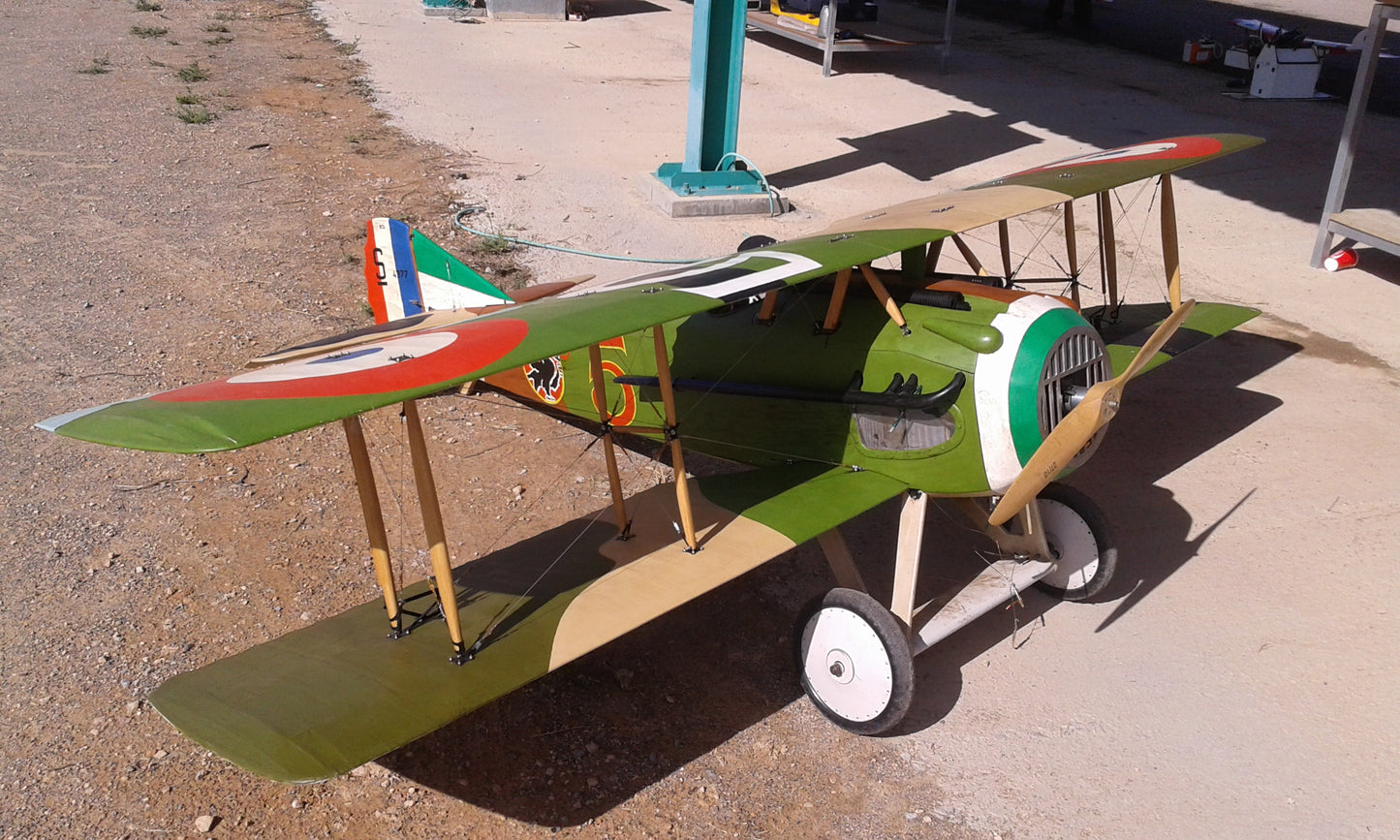

SPAD XIII PRO 1/4 scale

KIT Contents

BASIC:

• Assembly instructions for each element, step by step, with images and diagrams.
• Large template pieces for quick alignment and assembly on the fuselage, empennages and wings.
• Approximately 140 pieces of balsa wood of various thicknesses for ribs and/or light frames.
• Approximately 470 pieces of light plywood, of various thicknesses, for the production of intermediate strength pieces.
• Approximately 75 pieces of poplar plywood with thicknesses of 3 and 5 mm, additionally lightened inside, for the
  elaboration of pieces of greater resistance.
• Raft exit leading edges that require CNC cutting (approximately 20 pieces).
• Flame arrester frame in 9 mm birch plywood.
• 1:1 plan for the elaboration of braces.
• 1:1 plan for making a tail skid.
• 1:1 plan for the elaboration of main gear sides.
• 1:1 plan for making windshields.
• 1:1 plan for making the assembly base.
• 1:1 plan for making control horns and special parts.
• 1:1 plan for making 1 mm sheet metal hardware.
• Includes CNC mill cutting of all the frames, ribs and pieces provided in the kit. (more than 740 ml of CNC cutting with a milling cutter in approximately 715 pieces, with internal lightening for a lower final total weight).
• CD support photos for construction and reproduction of details to scale.
• List of supplied parts and check list.

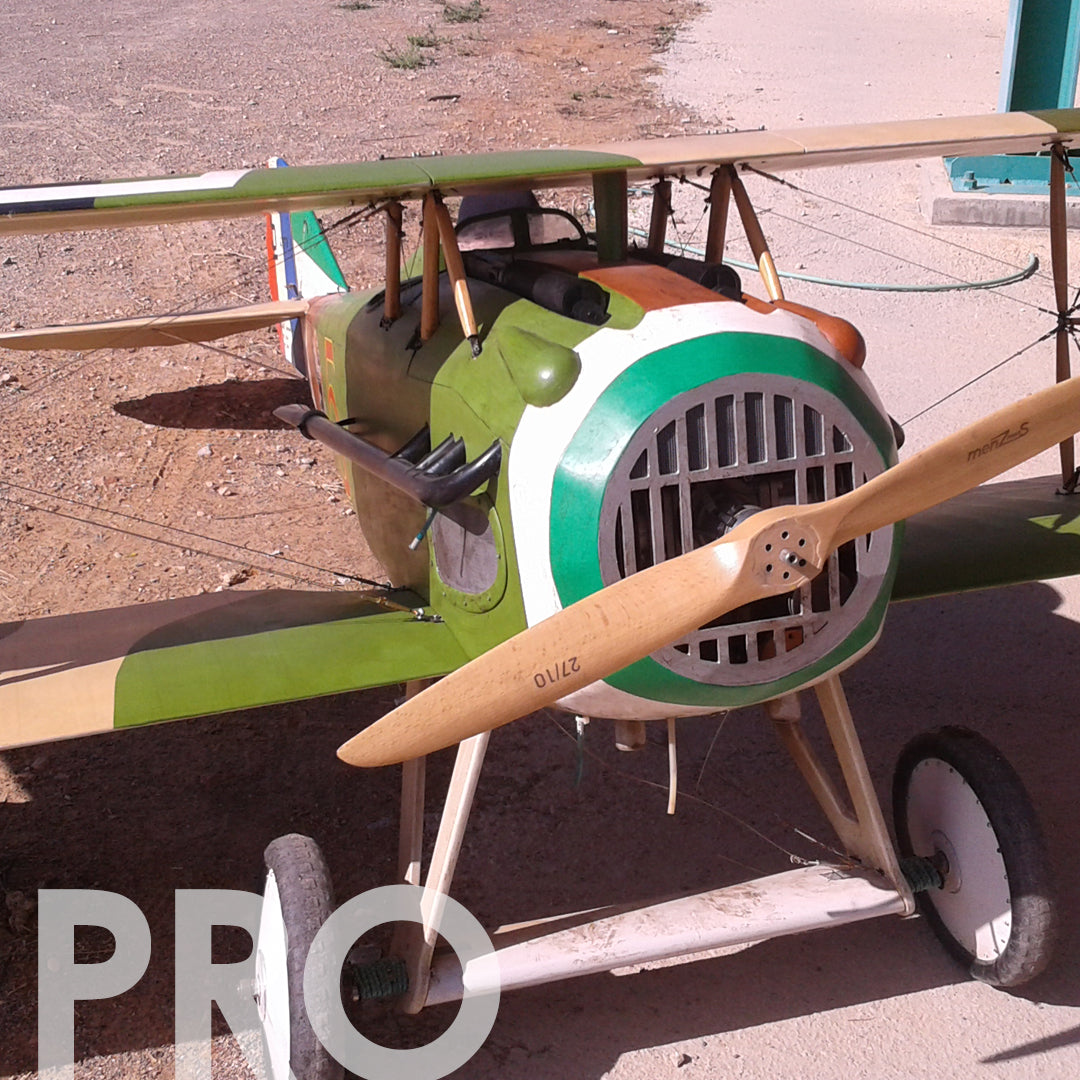

PRO:

Everything from the BASIC KIT, and also:

• Steel sheet 1x500x1000 mm, with approximately 220 pieces. laser cut, corresponding to all hardware with indication of
  bending angles.
• Balsa wood in 2x100x1000 mm sheets, for the veneer of wing surfaces, empennage, fuselage, rib cap strips.
• Balsa spars of various dimensions for leading/trailing edges for wings, empennage, control surfaces, etc. (approximately 12 units).
• Structural slats 20x30x500 mm for train support. (2 pcs).
• Beech/samba stringers of various dimensions for wing formation. (approximately 24 pieces).
• Samba/pine slats 5×5 and 3x 3mm for fuselage formation (approx. 23 pieces).
• Samba slats 30×10 mm for making cabana struts and wings. (32 pieces).
• 2 mm flexible plywood for cladding cabin areas.
• 3k carbon bayonet D12mm in diameter and fiberglass sleeve with a length of approximately 1,200 mm (3 units).
• Main train. 4 sides in 5 mm poplar, 2 rods of 6 mm and 1 of 8 mm diameter piano wire steel + 4 threaded rods of 4
  mm diameter.
• Samba slat tail skate 50 x 30 x 100 mm + 1:1 plan.
• Samba strip exhausts 10 x 10 x 200 mm + 1:1 plan.
• Vickers machine gun kit (2 units).
• Plane and acetate for the execution of the windshield cabin.
• Double position support base (normal/inverted) for construction, transportation and assembly.
• CD support photos for construction and reproduction of details to scale.
